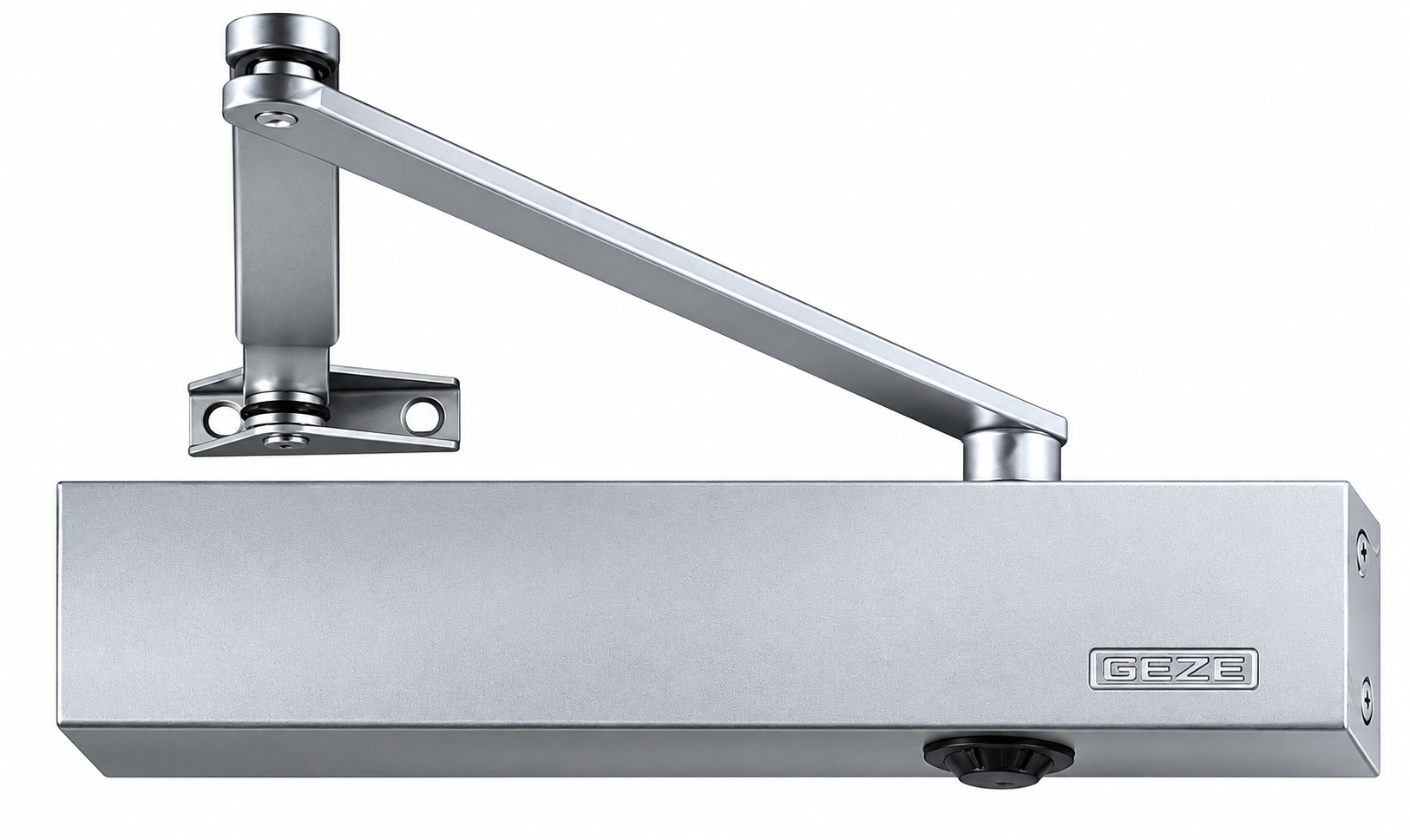

GEZE TS4000 is a door closer adapted for internal doors, external doors and fire doors. Can handle a maximum door width of 1400 mm. Can be installed on the door leaf hinge side or frame side. Door leaf assembly frame side possible with parallel arm bracket.

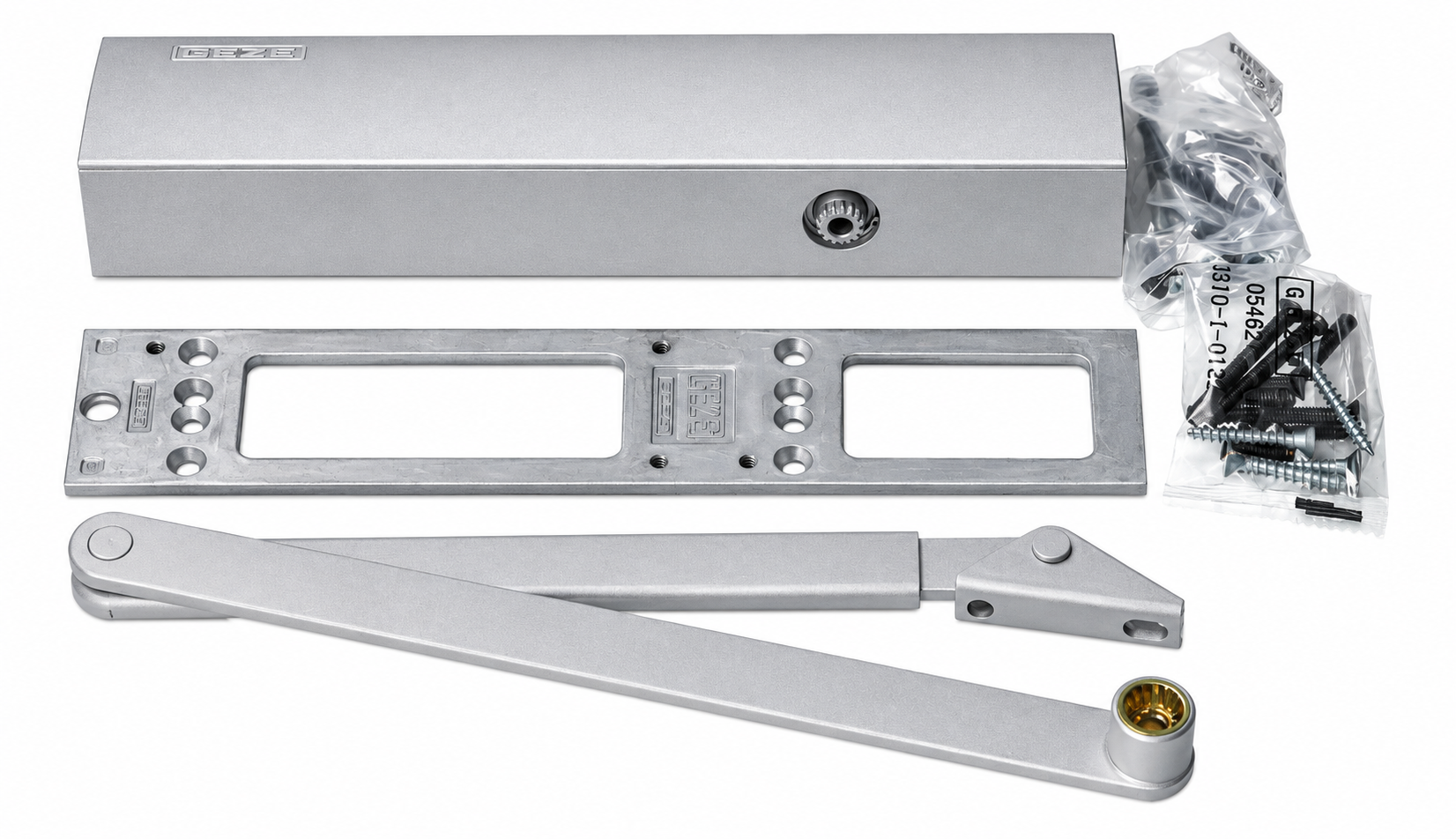

The kit consists of:
TS4000 Door closer housing (120374), Standard arm TS2000/4000 (120373), Mounting plate TS4000/5000 (120375).
TS4000 Door closer housing (120374), Standard arm TS2000/4000 (120373), Mounting plate TS4000/5000 (120375).
Characteristics:
- For doors with up to a 1400 mm door leaf width.
- Installed on the door leaf hinge side or frame side. (Door leaf assembly frame side with parallel arm bracket)
- Max opening angle 180°
- Step-less adjustable closing force, EN 1-6
- All functions are adjusted from the front.
- Adjustable closing speed
- Adjustable closing with standard arm
- The opening brake is adjustable from the front with valve
- Integrated hydraulically adjustable opening brake
- Optical indication of closing force
- Safety valve against vandalism
- Heat-stable valve
- For both right and left-hand doors.
- Setup angle 70° to 150° (with link arm)
- Approved in accordance with EN 1154
- Standard colours are silver, brown and white painted RAL 9016.
- Special colours are possible in accordance with the RAL or NCS scale.
