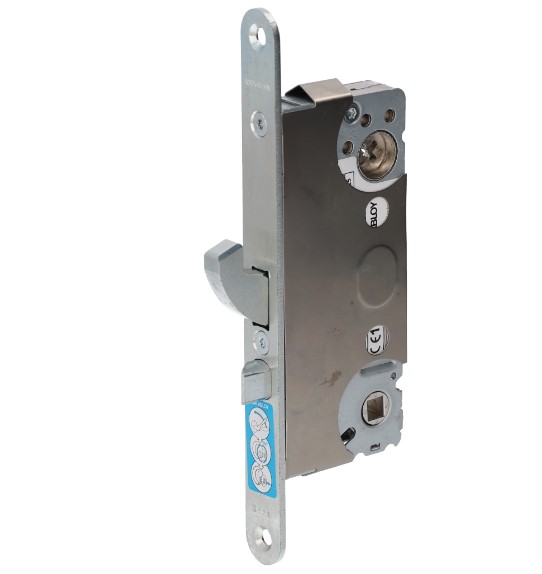

Lock case in the ASSA ABLOY Connect series. 510-50 is a mechanical lock case for houses, flats, service buildings, offices, archives or similar.
Features
Bolt depth 50 mm
Certified according to SS-EN 12209 and SSF 3522, class 5
Included in insurance company-approved lock unit
With pressure drop and hook bolt
Hardened and forced-guided hook bolt
Provides a connecting joint between door and frame
Reversible pressure drop for right/left
Steel pressure plate for fire-rated doors
After turning the key, confirmation that the door is locked is obtained by the handle being locked
Outside function:
The hook bolt is unlocked by moving the pressure plate upwards and locked by turning the key 360°, the pressure plate is locked.
The hook bolt and pressure drop are locked in by turning the pressure downwards after turning the key.
The pressure drop is pulled in with the pressure.
Inside function:
The hook bolt is unlocked by moving the pressure upwards and locked by turning the key 360°, the pressure is locked.
The hook bolt and pressure drop are locked in by turning the pressure downwards after turning the key.
The pressure drop is pulled in with the pressure.
If the knob is mounted on the inside of the door, ASSA recommends a magnetic knob to ensure the lock case functions correctly.
