Lightweight and flexible A-0 hinged door for interior use in marine environments. Tested and certified to fire class A-0in accordance with SOLAS and the IMO 2010 FTP Code, Part 3, and hold EC/MED and USCG certificates.

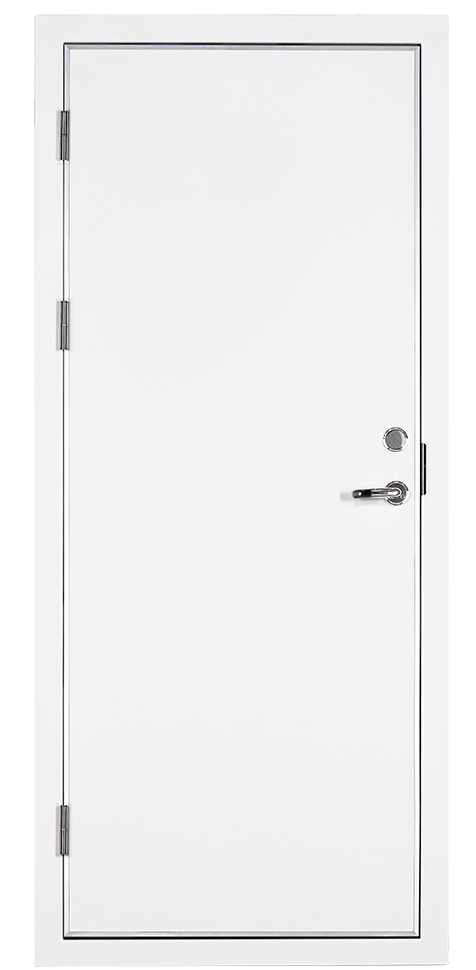

Single hinged door A-0
SKU: MV4298
Lightweight and flexible A-0 hinged door for interior use in marine environments. Tested and certified to fire class A-0in accordance with SOLAS and the IMO 2010 FTP Code, Part 3, and hold EC/MED and USCG certificates.
To see prices and place orders, you need to be logged in. Don’t have an account? Submit an application to get started.
Product Klassning
-
Fire -
Gas
Description
Documents
Product sheets
Mounting instructions
Technical Specifications
| Karm | Bolted, Welded |
|---|---|
| Fästram | No, Yes (wall thickness = 50), Yes (Wall thickness = own measurement) |
| Tröskel | S1, S2, S3, S4, S5, S6, S7, S8, S9 |
| Glasurtag | 400×400 square, 400×600 rectangle, No, Ø300 around |
| Låskista | Dorma 712, TrioVing 5316 |
| Ytskikt | Double plate, Optional RAL colour, RAL 9010, Stainless |
| Max certifierad dagöppning | 1000x2050mm (W x H) |
| Brand | A0 |
| Gas / Vädertålig | Ja / Nej |
| Dörrblad | 1,0 mm av antigen galvaniserat eller rostfritt stål, isolering med stenull. Dörrbladet har en tjocklek på 38 mm. |
| Karm | Z-karm av 4,0 mm stål |
| Gångjärn | Tre stycken rostfria gångjärn som skruvas fast på karmen och i dörrbladet |
| Trycke & långsskylt | Assa Abloy, Schwepper, VingCard, Dorma, Roca. |
| Klassning |
Accessories
-
Door holder Assa fix 440
SKU: 301-025
Door holder used to hold the door in the fully open position.
-
Door holder magnet VIRA 5024
SKU: 301-024
Wall-mounted door-holding magnet including anchor plate, designed to hold doors open and release them in the event of a power cut or fire alarm.
-
Magnetic contact Aritech Dc 124
SKU: 301-040
DC124 är avsedd för infällt montage i trä- eller metalldörrar och används för övervakning av öppning/stängning.
-
Roca 4060 Bowl handle
SKU: 201-154
The ROCA 4060 stainless steel recessed handle is a robust recessed handle, designed for heavy-duty marine and industrial doors.
-
Roca 2025
SKU: 201-158
A robust, recessed pull handle made of acid-resistant stainless steel, designed for heavy-duty marine and industrial doors.
-
BKS Panic bar
SKU: 201-148
Separate bar for the ‘BKS panic bar’ for use on fire-rated and escape doors. Suitable for use on heavy active and passive door leaves weighing up to 300 kg. Material: Acid-resistant stainless steel (AISI 316) Size: L 2000 mm. B
