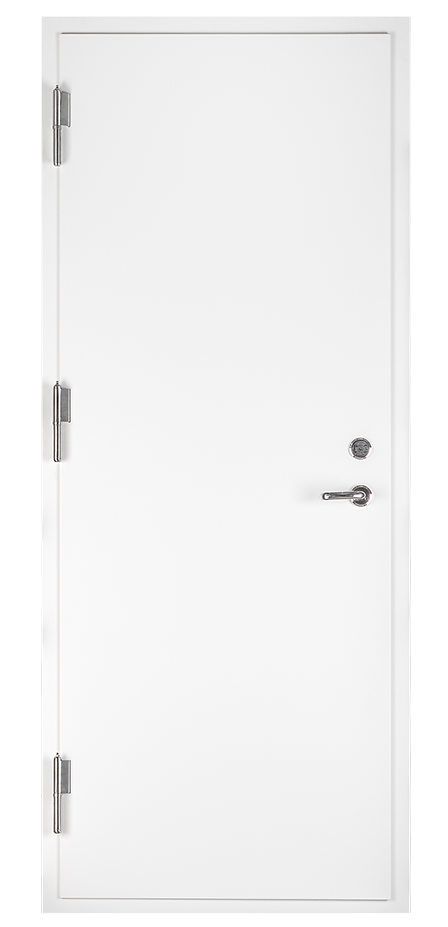

Single hinged door A-60G - Image 3

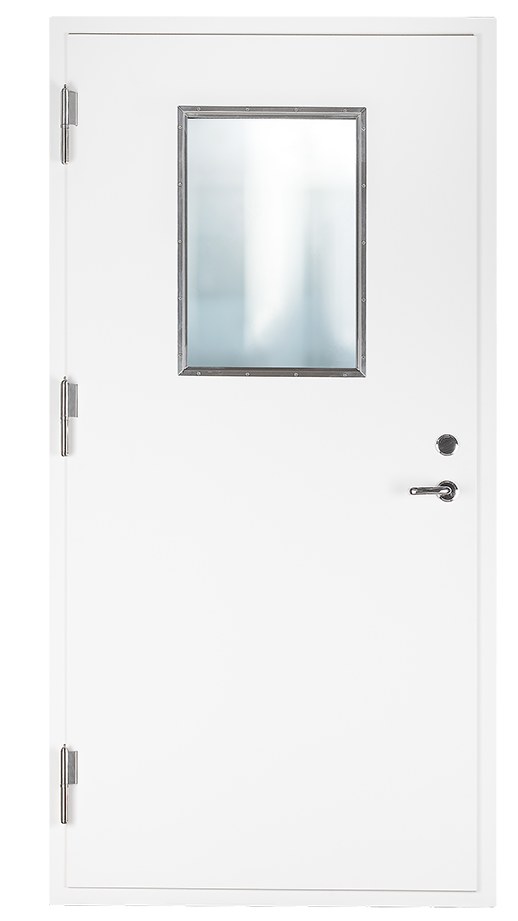

Single hinged door A-60G - Image 4

Single hinged door A-60G

SKU: MV4360G

Fire-rated A-60 gas-tight hinged door for use in marine environments. Developed to meet the high standards of fire safety and withstand the stresses encountered in harsh offshore environments. Tested and certified to fire class A-60in accordance with SOLAS and the IMO 2010 FTP Code, Part 3, and hold EC/MED and USCG certificates.

Product Klassning

  • Fire
  • Gas
Description

Fire-rated A-60 gas-tight hinged door for use in marine environments. Developed to meet the high standards of fire safety and withstand the stresses encountered in harsh offshore environments. Tested and certified to fire class A-60in accordance with SOLAS and the IMO 2010 FTP Code, Part 3, and hold EC/MED and USCG certificates.

Documents
Technical Specifications
Karm

Bolted, Welded
Fästram

No, Yes (wall thickness = 50), Yes (Wall thickness = own measurement)
Tröskel

S1, S2, S3, S4, S5, S6, S7, S8, S9
Glasurtag

400×400 square, 400×600 rectangle, No, Ø300 around
Låskista

Dorma 1216, TrioVing 5316
Ytskikt

Optional RAL colour, RAL 9010, Stainless
Max certifierad dagöppning

1100 x 2100 (W x H)
Brand

60 min
Gas / Vädertålig

Ja / Nej
Dörrblad

1,0 mm av antigen galvaniserat eller rostfritt stål, isolering med stenull. Dörrbladet har en tjocklek på 62 mm.
Karm

Z-karm av 4,0 mm stål
Gångjärn

Tre stycken rostfria gångjärn av typen G (gas tight) som svetsas fast på karmen och skruvas fast i dörrbladet
Trycke & långsskylt

Assa Abloy, Schwepper, VingCard, Dorma, Roca
Klassning

,
