Lightweight and smooth-operating B-15 hinged door with top module for interior use in marine environments. Designed for easy installation and to meet high standards of performance, design and fire safety on board ships and oil platforms. Tested and certified to fire class B-15Lightweight and versatile B-15 hinged door for indoor use in marine environments. Designed for easy installation and to meet high standards of performance, design and fire safety on board ships and oil platforms. Tested and certified to fire class B-15in accordance with SOLAS and the IMO 2010 FTP Code, Part 3, and hold EC/MED and USCG certificates. Sound reduction values 34 dB Rw in accordance with SS-EN ISO 140/3:95.
Single hinged door with top module B-15
SKU: MV2255M
Lightweight and versatile B-15 hinged door for indoor use in marine environments. Designed for easy installation and to meet high standards of performance, design and fire safety on board ships and oil platforms. Tested and certified to fire class B-15in accordance with SOLAS and the IMO 2010 FTP Code, Part 3, and hold EC/MED and USCG certificates. Sound reduction values 44 dB Rw in accordance with SS-EN ISO 140/3:95
To see prices and place orders, you need to be logged in. Don’t have an account? Submit an application to get started.
Product Klassning
-
Fire -
Sound
Description
Documents
Product sheets
Mounting instructions
Technical Specifications
| Karm | L-frame with module, Z-frame with module |
|---|---|
| Fästram | No, Yes (wall thickness = 50), Yes (Wall thickness = own measurement) |
| Tröskel | S1, S2, S3, S4, S5, S6 |
| Glasurtag | 400×400 square, 400×600 rectangle, No, Ø300 around |
| Låskista | Dorma 712, TrioVing 5316 |
| Ytskikt | Double plate, Optional RAL colour, RAL 9010, Stainless |
| Max certifierad dagöppning | 1000 x 2000 (W x H) |
| Brand | 15 min |
| Dörrblad | 0,7mm av antigen kallvalslad plåt, rostfri plåt eller galvad plåt. Isoleras med stenull och dörrbladet har en tjocklek på 38mm |
| Karm | 1,5mm av antigen kallvalslad, rostfri eller galvad plåt. Karmen är antigen Z eller L formad |
| Gångjärn | Tre stycken rostfria gångjärn som skruvas fast på karmen och i dörrbladet |
| Omfattningslist | Omfattar dörrbladet i antigen alluminium, rostfri eller en pulverlackad finish |
| Trycke & långsskylt | Assa Abloy, Schwepper, VingCard, Dorma, Roca. |
| Klassning |
Accessories
-

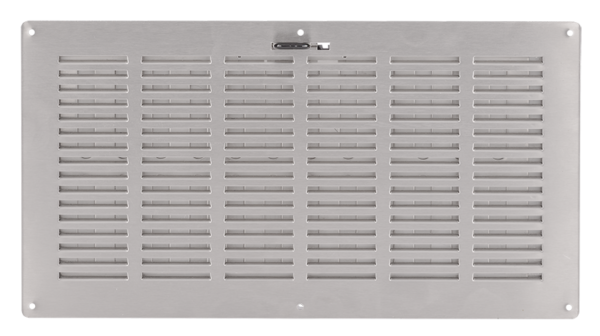

Ventilation louvre JS 81 – 200 m²
SKU: B-10006
Ventilation louvre that are integrated into the door leaf. Acid-resistant stainless steel (AISI316).
-
Roca 2025
SKU: 201-158
A robust, recessed pull handle made of acid-resistant stainless steel, designed for heavy-duty marine and industrial doors.
-
BKS Panic bar
SKU: 201-148
Separate bar for the ‘BKS panic bar’ for use on fire-rated and escape doors. Suitable for use on heavy active and passive door leaves weighing up to 300 kg. Material: Acid-resistant stainless steel (AISI 316) Size: L 2000 mm. B
-
Door holder magnet VIRA 5024
SKU: 301-024
Wall-mounted door-holding magnet including anchor plate, designed to hold doors open and release them in the event of a power cut or fire alarm.
-

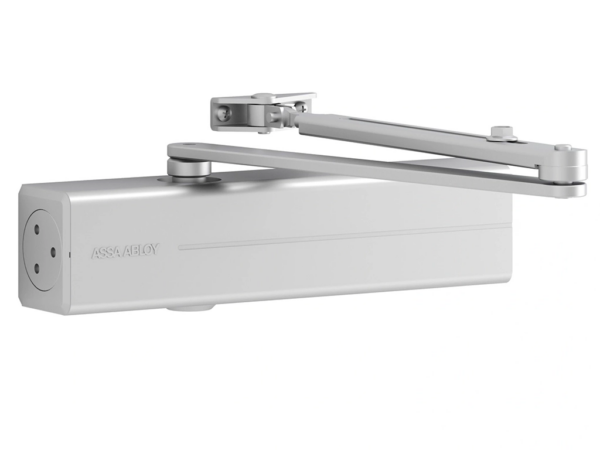

Door closer Assa DC300
SKU: 301-018
The ASSA ABLOY DC300 series is suitable for all types of external, internal and fire doors where secure and controlled closing is required.
-
Magnetic contact Aritech Dc 124
SKU: 301-040
DC124 är avsedd för infällt montage i trä- eller metalldörrar och används för övervakning av öppning/stängning.
-
Door holder Assa fix 440
SKU: 301-025
Door holder used to hold the door in the fully open position.
